The PRAG 3.5kVA/24V Heavy-Duty Inverter- Studer Xtender -(XTM-3500)
₦973,200.00
PRODUCT SPECIFICATIONS
| Inverter | |
| Model | XTM 3500-24 |
| Nominal battery voltage | 24 Vdc |
| Input voltage range | 19–34 Vdc |
| Continuous power @ 25°C | 3000 VA |
| Power 30 min. @ 25°C | 3500 VA |
| Power 5 sec. @ 25°C | 9 kVA |
| Maximum load | Up to short-circuit |
| Asymmetric load | Up to Pcont. |
| Load detection (stand-by) | 2 to 25 W |
| Cos j | 0.1-1 |
| Maximum efficiency | 94% |
| Consumption OFF/Stand-by/ON | 1.4W / 1.6W / 12W |
| Output voltage | Pure sine wave 230 Vac (± 2%) / 120 Vac (1) |
| Output frequency | Adjustable 45–60Hz (1) ± 0.05 % (crystal controlled) |
| Harmonic distortion | < 2% |
| Overload and short-circuit protection | Automatic disconnection with 3-time restart attempt |
| Overheat protection | Warning before shut-off with automatic restart |
| Battery charger | |
| Charge Characteristic | 6 steps: Bulk, Absorption, Floating, Equalization, reduced floating, periodic absorption Number of steps, thresholds, end current and times completely adjustable with the RCC-02/-03 |
| Maximum charging current | 90 A |
| Temperature compensation | With BTS-01 or BSP 500/1200 |
| Power Factor Correction (PFC) | EN 61000-3-2 |
| General data | XTM 3500-24 |
| Input voltage range | 150 to 265 Vac / 50 to 140 Vac (1) |
| Input frequency | 45 to 65 Hz |
| Input current max. (transfer relay) / Output current max. | 50 Aac / 56 Aac |
| Transfer time | <15 ms |
| Multifunction contacts | 2 independent contacts (potential free 3 points, 16Aac / 5Adc) |
| Weight | 21.2 kg |
| Dimensions h/w/l [mm] | 133 / 322 / 466 |
| EU declaration of conformity | Low Voltage Directive (LVD) 2014/35/EU: -EN 50178:1997, EN 62109-1:2010 Electromagnetic Compliance (EMC) Directive 2014/30/EU: – EN 62040-2:2006, EN 61000-3-2:2014, EN 61000-3-12:2011 |
| Operating temperature range | -20 to 55°C |
| Relative humidity in operation | 95% without condensation |
| Ventilation | Forced from 55°C |
| Acoustic level | < 40 dB / < 45 dB (without/with ventilation) |
| Warranty | |
| ISO Certification | 9001:2008 / 14001:2004 |
| Accessories | |
| Remote control RCC-02 or RCC-03 | Adjustable with the RCC-02/-03 |
| Module Xcom-232i | Adjustable with the RCC-02/-03 |
| Communication sets Xcom-LAN / Xcom-GSM / Xcom-SMS | Adjustable with the RCC-02/-03 |
| Battery Status Processor BSP | Adjustable with the RCC-02/-03 |
| Remote Control Module RCM-10 (3 m) | Adjustable with the RCC-02/-03 |
| 2 aux. contacts module ARM-02 | |
| Cooling Module ECF-01 | |
| Battery temp. sensor BTS-01 (3 m) | Adjustable with the RCC-02/-03 |
| Communication cable for 3ph and // CAB-RJ45-8-2 | Adjustable with the RCC-02/-03 |
| Mounting frame X-Connect | |
Product Description

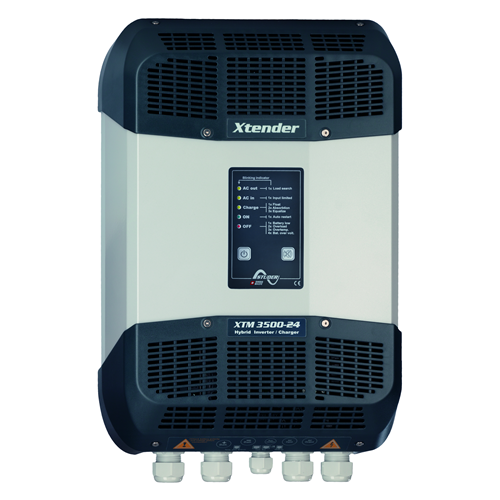

This Studer Xtender XTM 3500—3.5KVA—24V—inverter/charger has a continuous power rating of 3kVA up to an ambient temperature. In addition to this, it has a 30 minute power rating of 3.5kVA, and can deliver 9kVA for up to 5 seconds! Thanks to this very high surge power capacity, it can supply loads with a high start-up current without worries.
The battery charging current can be adjusted between 0 and 90Adc. The factory default settings include a battery charging curve best suited for lead-acid batteries with gelled electrolyte (GEL). This battery charging curve can be easily adapted to other types of batteries, including OPzS, NiFe, lithium, and redox flow, to name but a few.
The transfer system is active when an AC power source (generator, public grid, shore power…) is available at the AC input of the Xtender. The transition between inverter and transfer mode is achieved without any power cut and allows up to 50Aac of current to pass through to the loads. Similarly, the transition between transfer and inverter mode is extremely fast (max 15ms), which makes the Xtender suitable for many UPS (uninterruptible power supply) applications.
The Smart-Boost function allows the Xtender to assist the AC source via the inverter function. This way, the currents from both sources (AC-in and inverter) are combined to deliver the energy required by big loads if the loads are more than the AC source can supply.
The injection function allows the Xtender to send energy to the grid. This function is especially useful in energy storage systems where either the excess energy is injected into the grid or a specific current is injected at a specific time of the day.
The Xtender has two auxiliary contacts, configured by default for the automatic start of a generator and the alarm function.
