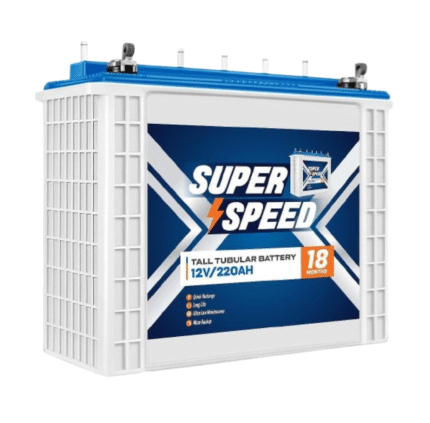

New Deep Cycle Battery Offer
20%
Hurry up! Offer ends in:
Power Inverters
Stabilizers
-
Prag Stabilizer, Stabilizers

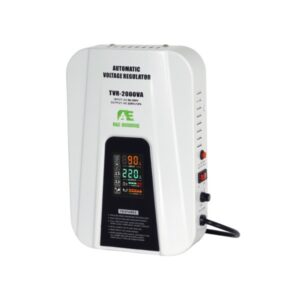

2KVA Relay Voltage Stabilizer (95V-270V)
Specifications
- Model: TM-2000VA
- Power: 2KVA
- Input voltage: 95V-270V AC
- Output voltage: 220V ± 10%
- Efficiency: High
- Display: LED Digital Display
- Frequency: 50Hz/60Hz
- Delay Time: Long Delay (200s) / Short Delay (5 sec)
- Over-voltage protection: AC246 ± 4V
- High Temperature
- Short Circuit
- Phase: Single
- Technology: Relay Control + Toroidal Transformer Technology
SKU: n/a -
-
Prag Stabilizer, Stabilizers
150KVA Three Phase Servo Voltage Stabilizer 380V (±30%) input
Specifications
Model SBW 3-Phase 150KVA AVR INPUT Input voltage 220/380V system, other volotage system can be customized Input Range/Frequency ±30%, (±15% ~ ±50 can be customized) / 50/60Hz OUTPUT Output voltage 220/380V system, other volotage system can be customized Output Accuracy Selectable: ±1% to ±15%, Factory present: ±12% Power Factor 0.8 ~ 1 Efficiency >98% on full load Working Principle Servo Motor, microprocessor controlled, full automatic Insulation Class of Transformer H Class Method of Voltage Regulation Three phase independent regulation Indicators Voltage, Current, Power, Parameters Setting, Failure Information Cooling Natural/Forced air Protection Level IP21 (Indoor), IP54 (Outdoor) Electrical Safety CE Equivalent ENVIRONMENTAL Working Temperature -20 C to +50 C Altitude <1000m Relative Humidity <90% Noise <55dB FUNCTION Normal Function Malfunction protection, Short-circuit protection, Lack of phase protection, Wrong sequence protection, Over Voltage / Under Voltage protection, Overload Protection, Safe Start, Manual bypass, Indicating alarms, Security password, RS232/485 interface DIMENSIONS 320 x 850 x 1470 SKU: n/a -
Blue-gate Stabilizer, Stabilizers
BLUEGATE WORLD SERVO-AVR SERIES – 10KVA
MODEL BGE10AS BGE15AS BGE20AS BGE10AS33 BGE20AS33 BGE30AS33 VA Rating 10KVA 15KVA 20KVA 10KVA 20KVA 30KVA INPUT Phase Single phase + N+ GND [1:1] Three phase + N + GND [3:3] Voltage Range 100VAC – 260VAC Line Voltage 173VAC -433VAC OUTPUT Voltage 220V 380V Voltage precision ≤±3% Frequency 50/60Hz Over-voltage protection Output phase voltage 250V±5V Low-voltage protection Output phase voltage 183V±5V Efficiency ≥96% SYSTEM Display model LED Direction light, Finger Voltage Diagram Input/output device optional plug; Socket/Terminal Terminal Waveform Distortion No affixation Waveform distortion Response Time ±10% varies <1s Insulation Resistance ≥2MΩ Anti-electric intension Low frequency sine voltage 1500V take 1minute No Rout and camber phenomena Ambient Temperature 0⁰C – 40⁰C Relative Humidity ≤95% Working Continue OTHERS Dimension(D*W*H)mm 485x220x430 370x330x612 350x330x702 380x330x752 400x530x732 Net weight(kg) 31 53 59 37 58 95 Measure (D*W*H)mm 555x280x495 500x430x690 435x460x790 420x555x840 500x635x830 Gross weight(kg) 32 56 61.3 40 61.6 105 SKU: n/a
